A1200/600 CF-IDE Adapter (buffered)

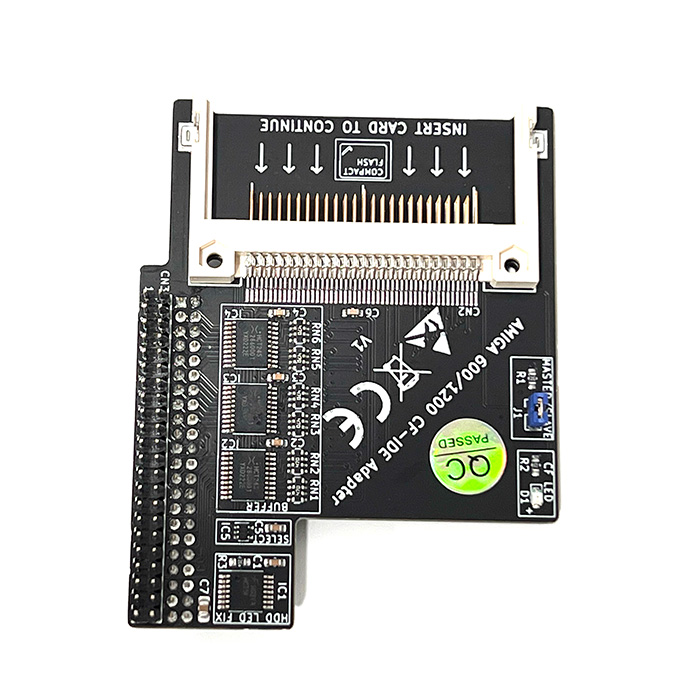

For A1200 and A600. The A1200/600 CF-IDE buffered adapter allows to connect a CF card and an additonal IDE device to your Amiga 1200 or Amiga 600. It features one CF card slot, one 44pin IDE connector, a buffer for 24 IDE signals to stabilize data transfers, and also a coverter to fix well knowed issues with the IDE LED of Amiga 1200/600.

Features:

• For Amiga 1200 and Amiga 600
• Buffer for the 24 IDE signals to stabilize data transfers
• CF card slot on-board
• Additional 44pin IDE connector that lets you use longer IDE data cables without errors (100cm)
• CF card (on the CF card slot) and an IDE device (attached to the 44pin IDE connector) can be used simultaneously
• Jumper to set the on-board CF slot like Master or Slave
• It fix the issues with the A1200/600 IDE LED and CF/SD cards
• Compatible with AmigaOS 1.3, 2.1, 3.1, 3.9, 3.1.4, 3.2, and 3.2.1
• PCMCIA friendly

The A1200/600 CF-IDE buffered adapter allows to connect a CF card and an additonal IDE device to your Amiga 1200 or Amiga 600. It features one CF card slot, one 44pin IDE connector, a buffer for 24 IDE signals to stabilize data transfers, and also a coverter to fix well knowed issues with the IDE LED of Amiga 1200/600 (always on when some CF/SD cards or IDE adapters are directly attached to the IDE port).

The adapter allows to connect to Amiga up to two IDE 2 IDE devices, like hard disks, Compact Flash cards, SD2IDE adapters, or CD/DVD optical drives. The on-board CF slot can be set to master or slave by using a jumper.
