MiSTer A/V Pro v9.2

Original price was: €49,90.Current price is: €39,90. (excl. VAT)

Defining the standards, the new MiSTer A/V Pro v9.2 official board replaces that both ANALOG I/O and DIGITAL I/O boards. Committed to official development, 99% mister-devel cores (active cores) are already supported* by new MiSTer A/V Pro v9.2.

According to Jotego itself, the official implementation of the framework in Jotego’s cores is scheduled for end of August. Beta JT cores A/V Pro compatible available now and need to be manually installed.

A/V Pro features:

  • 24 Bit ADV Video DAC with official MiSTer framework integration*
  • Hi-Fi Analog Audio DAC with crystal clear stereo audio, pop-free and better frequency response
  • Exclusive hybrid design, it can be used as Digital I/O only for DUAL RAM or Analog I/O with A/V module
  • ADC-In 1.3 board
  • Mini TOSLINK digital audio
  • USER I/O Port for SNAC, MT-32 Pi and IEC C64
  • Simultaneous HDMI and Analog Audio/Video
  • Unique status led system with light isolation
  • 3x User Buttons
  • High and Low Fan Speed on the back of board (3.3v / 5.5v)
  • High quality construction and customizable build with upgradable A/V module
  • Compatible with previous Analog cases

Why 24bit Video DAC is better? Not only does the image look amazing and colorful it registers the data by clock. With resistors ladder, like used in other boards, there is no registration of all bits at the same time, so there are more chances to have video artifacts.

With new A/V Pro v9.2 all DE10-nano SWs should be OFF. When framework detect the new A/V module it stops using SW3. So SW3 may be helpful just if you use the Digital DUAL SDRAM config with corresponding core. In case the core is doing something quicker than framework, it detects the A/V module.

You can add a new fan or reuse it from your old board

Without Fan Stock Fan +€6,90 RGB Silent Fan +€9,90 Noctua Premium Fan +€19,90

If you have the classic Digital I/O 1.2 board, you’ll need a new rear to use the A/V pro with your official case. We have options in black or white and for the classic MiSTer hub or BlisSTer improved hub. This is included for free.

I already have a Analog case don't need rear side MISTer White MISTer Black BlisSTer White BlisSTer Black

Description

Package includes:

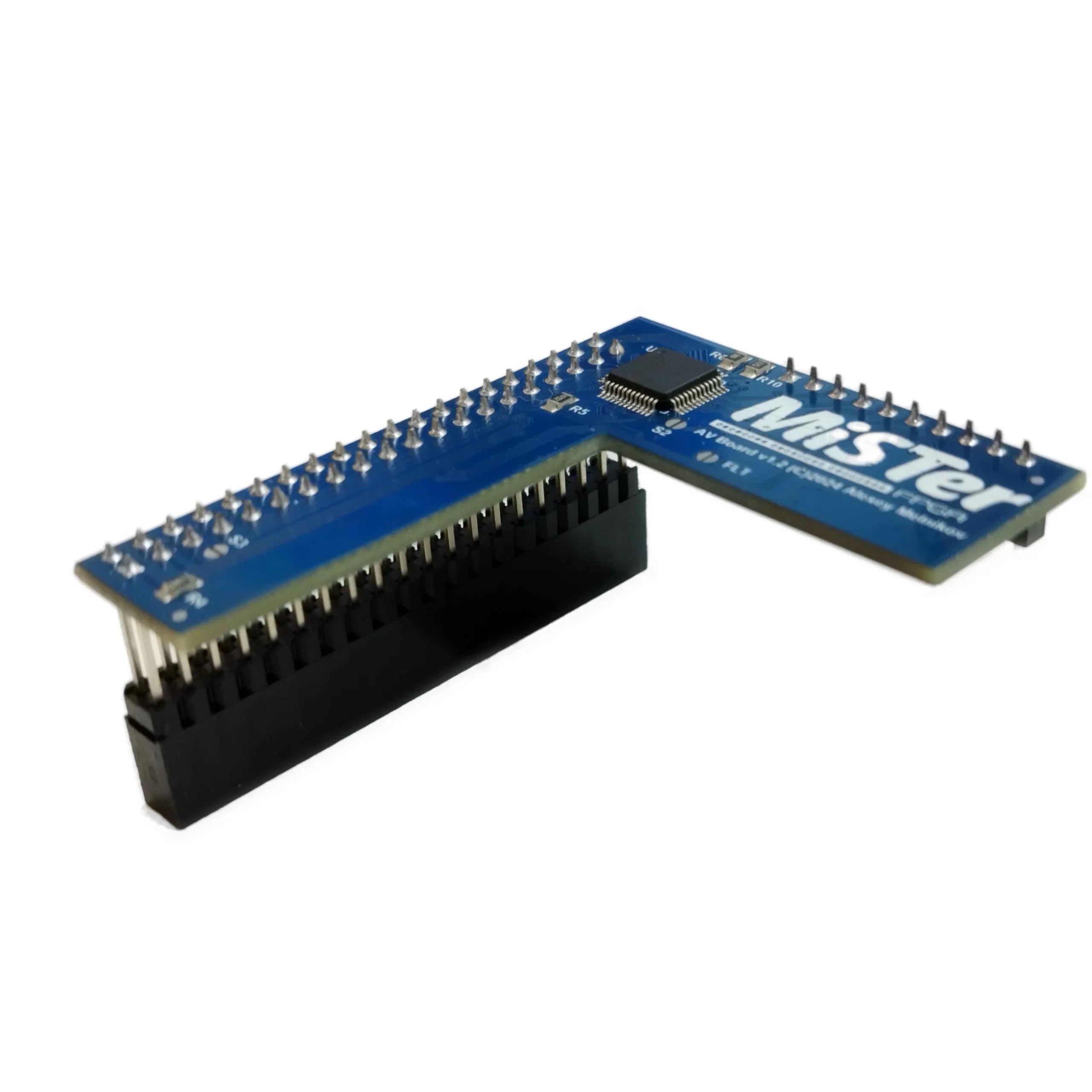

  • A/V Module for 24 bit vídeo and Hi-Fi audio
  • I/O Digital 9.2
  • ADC-in 1.3 (for Audio / Tape / Cassete Input)
  • Optional rear side supplied for official MiSTer or BlisSTer case (Black or White)

Additional information

Weight 0,300 kg
